| Place of Origin: | QINGDAO |
|---|---|
| Brand Name: | XINRUI |
| Certification: | CE,ISO |
| Model Number: | SJ-75 |
| Minimum Order Quantity: | 1set |
| Price: | USD32000-45000/Set |
| Packaging Details: | Wooden case and PE film |
| Delivery Time: | 7-12 days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 10+Set+per Month |
| Name: | Meltblown Nonwoven Fabric Machine Production Line | Width: | 1400mm 1600mm |
|---|---|---|---|
| Voltage: | 380V,50Hz | Output: | 400-500kg/day |
| Motor: | Siemens Motor | Inverter: | ABB |
| SSR: | Fotek | Type: | Vertical-type |
| High Light: | 1600mm Meltblown Nonwoven Fabric Machine,1400mm Meltblown Nonwoven Fabric Machine,1400mm Nonwoven Fabric Production Line |
||

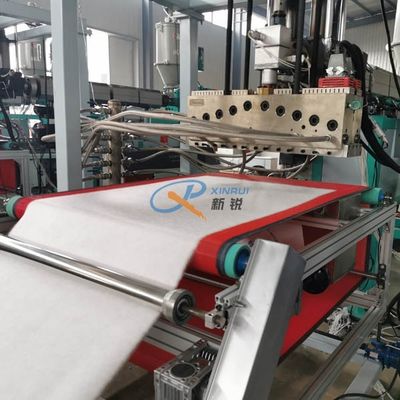

1400mm 1600mm Meltblown Nonwoven Fabric Machine Production Line
Meltblown Nonwoven Fabric Machine Production Line is an equipment that used to produce pp melt blown fabric which are widely used both in face mask and medical industry.
1. Basic Introduction:
1. Factory condition:
|
Location |
Indoors |
|
Power supply |
No dangerous area |
|
Humidity |
≤65% |
|
Temperature |
20-30℃ |
|
Power |
3-Phase,380V,50Hz |
|
Total installed capacity |
80KVA |
|
Prodution line dimension |
10m*2m*3m |
1.2 Flow Chart:
Vacuum Loader→Extruder→Hydraulic screen changer→Metering gear pump →Mould→Cooling conveyor belt→Electrostatic electret device→Online slitting device→Winding device
2. PP Meltblown Nonwoven Fabric Making Machine Advantage:
1. Our machine design is mainly to produce BFE95&99 meltblown nonwoven fabric.
2. We adopt high quality T-die and spinneret,it is the core element for fabric filament quality,
because the spinneret hole is smaller,generally it is Φ0.2-0.3mm,if mould quality is bad,it is easier to be blocked,it is hard to produce high quality meltblown nonwoven fabric as well as increase the more time on cleaning the spinneret hole.
3. High quality hydraulic sreen changer and meter pump could supply stable pressure to T-die and it would help to produce uniform and even fabric.
4. Our meltblown fabric making machine is equipped with all the necesary machines like electrostatic electret device,heating oven,ultrasonic cleaning device and mixer
