|Key Selling Points:
||Easy To Operate,High-accuracy,Multifunctional,Automatic,Energy Saving
40KW board welding machine,
20m3 board welding machine,
20m3 welding rod manufacturing machine

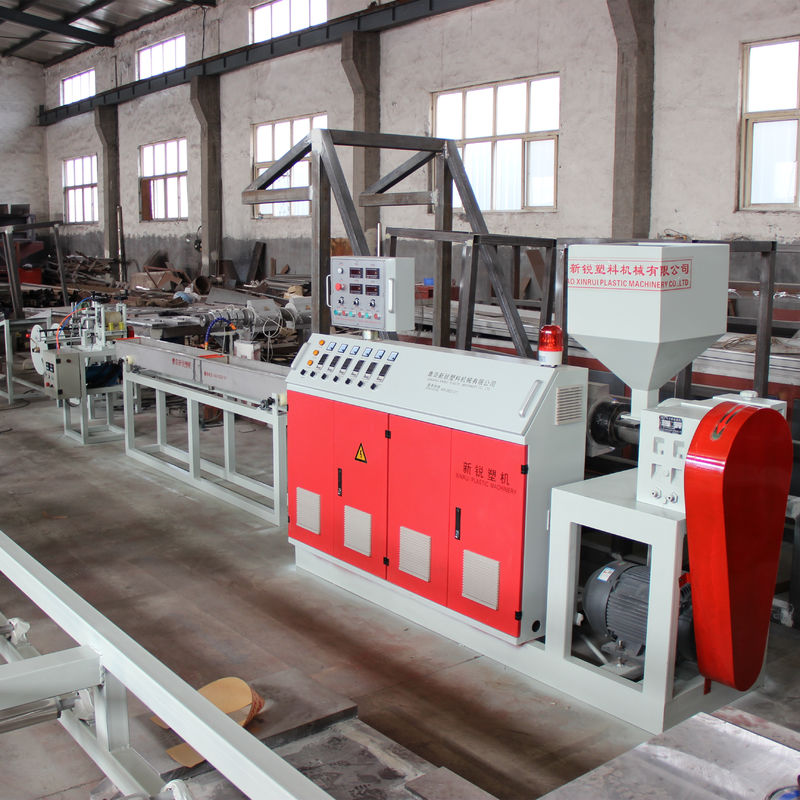

PP PE PVC Board Welding Use Plastic Welding Rod Making Machine
Triangle&Round PVC PE PP Welding Rod Making Machine
Loader→Extruder→Die→Water tank→Haul Off→Cutter→Stacker&Winder
1. This production line adopts single screw extruder equipped with SIEMENS motor and ABB inverter.
2. Special design for die head to ensure the consistent and stable production as well as to achieve to change sizes fast.
3. Reasonable water temperature control to ensure the even roundness and smooth surface.
4. Haul off could match cutter well to achieve fixed-length cut and reduce the tolerance.
5. Accurate winding to guarantee the welding rod winded in alignment.
Welding rod diameter:
2mm,3mm,4mm,6mm and etc.
||No dangerous area
||3-phase, 380V, 50Hz
|Total Installed Power
||≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line
||0.3 m³ /min, >0.5MPa,
Equipped with 3kw air compressor
|Production Line Dimension
