BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating

1set
MOQ
USD32000-45000/Set
Price
BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Non Woven Fabric Manufacturing Machine
Installed Capacity: 80-100KVA
Voltage: 380V,50Hz
Motor: Siemens Motor
Contactor: Schneider
Temperature Controller: Omron
SSR: Fotek
Type: Vertical-type
Highlight:

BFE99 Meltblown Nonwoven Fabric Making Machine

,

BFE95 Meltblown Nonwoven Fabric Making Machine

,

BFE95 non woven fabric manufacturing machine

Basic Infomation
Place of Origin: QINGDAO
Brand Name: XINRUI
Certification: CE,ISO
Model Number: SJ-75
Payment & Shipping Terms
Packaging Details: Wooden case and PE film
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10+Set+per Month
Product Description

BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating



Meltblown Nonwoven Fabric Making Machine is a polymer melt extruded from a screw extruder. The polymer is extremely stretched by high-speed hot air or other means to form very fine short fibers, which are aggregated to A web is formed on a roller or a screen curtain, and is finally reinforced by self-adhesion or thermal bonding. Its unique properties are widely used in mask filter materials, thermal insulation filling materials, medical health materials, wiping materials, etc.



1. Basic Introduction:



1.1Factory condition:

Location Indoors
Power supply No dangerous area
Humidity ≤65%
Temperature 20-30℃
Power 3-Phase,380V,50Hz
Total installed capacity 80KVA
Prodution line dimension 10m*2m*3m




1.2 Flow Chart:

Vacuum Loader→Extruder→Hydraulic screen changer→Metering gear pump →Mould→Cooling conveyor belt→Electrostatic electret device→Online slitting device→Winding device



2. PP Meltblown Nonwoven Fabric Making Machine Advantage:



1. Our machine design is mainly to produce BFE95&99 meltblown nonwoven fabric.

2. We adopt high quality T-die and spinneret,it is the core element for fabric filament quality,

because the spinneret hole is smaller,generally it is Φ0.2-0.3mm,if mould quality is bad,it is easier to be blocked,it is hard to produce high quality meltblown nonwoven fabric as well as increase the more time on cleaning the spinneret hole.

3. High quality hydraulic sreen changer and meter pump could supply stable pressure to T-die and it would help to produce uniform and even fabric.

4. Our meltblown fabric making machine is equipped with all the necesary machines like electrostatic electret device,heating oven,ultrasonic cleaning device and mixer.

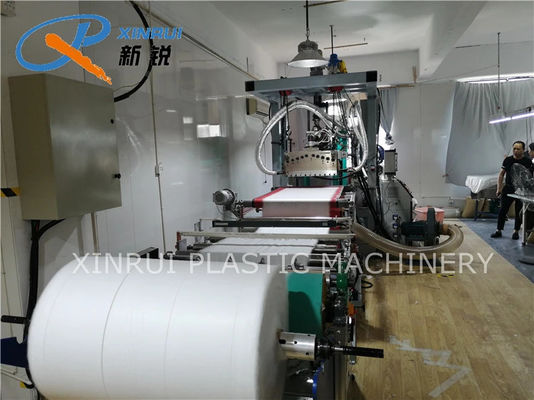

3. Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine Pictures:

BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating 0BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating 1BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating 2BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating 3

BFE95 BFE99 Meltblown Nonwoven Fabric Making Machine Electric Heating 4
