Polycarbonate 1220mm 3m Plastic Board Making Machine

Basic Information
Place of Origin: QINGDAO
Brand Name: XINRUI
Certification: CE,ISO
Model Number: SJ
Minimum Order Quantity: 1set
Price: USD145000
Packaging Details: wooden case and PE flim
Delivery Time: 60days
Payment Terms: L/C, T/T, D/P
Supply Ability: 5sets per month
Motor: Siemens Inverter: ABB
Contactor: Schneider Temperature Controller: Omron
Board Thickness: 1-10mm Control: PLC Control
Touch Screen: Siemens Warranty Period: 1 Year
High Light:

1220mm Plastic Board Making Machine

,

3m Plastic Board Making Machine

,

Polycarbonate board extrusion line

PC Solid Board Production Line:

The feature of Polycarbonate solid sheet:

High impact strength makes its virtually unbreakable and resistant to fracture.
Good electrical insulation properties.
UV light resistant to avoids extreme colour deterioration.
High degree of transparency and light transmission.
Low flammability (fire resistant).
Light weight & design flexibility.
High heat resistance, making it ideal for outdoor application.



The Sheet sizes:

Board Thickness: 1-10mm

Board width:1220mm-2100mm

Length: customized length

Machine description:

1. Equipped with heating and mixing device

2. Coextrusion technolgoy and make surface UV layer.

3. Melt metering pump could achieve stable extrusion with even pressure.

4. Super quality calender rollers

5. Equipped with protective film lamination device.

6. Automatic robotic arm stackers.

7. PLC control system and Siemens motor,Servo motor,ABB inverter and speed regulator,Schneider contactor,Omron temperature controller.

Enviromental condition:

Location Indoors
Power Supply No dangerous area
Temperature 0-40℃
Power 3-Phase,380V,50Hz
Total installed capacity ≥350KVA
Cooling water ≤20ºC ≥0.3MPa, outdoor water tank: 20-30m3, water circulated with production line
Compressed air 0.3 m³ /min, >0.5MPa,
Equipped with 4kw air compressor
Production Line 30m*3m*3m
Labor 2-3 persons

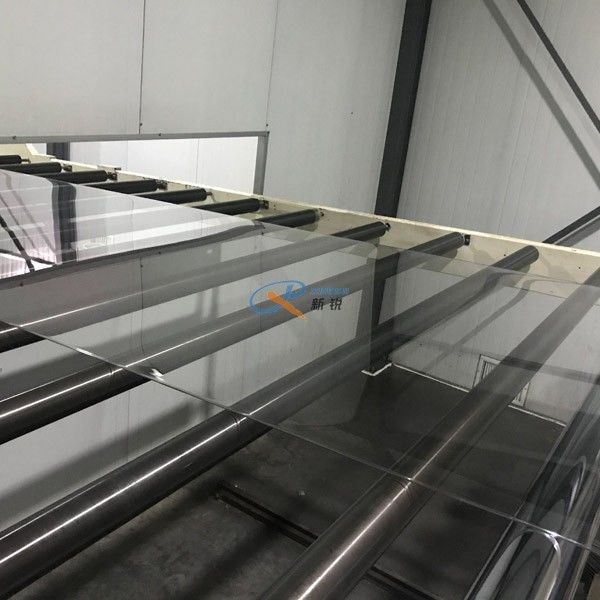

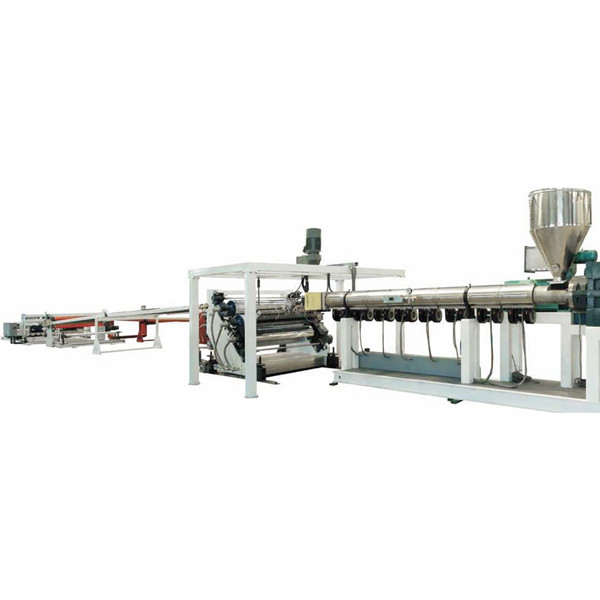

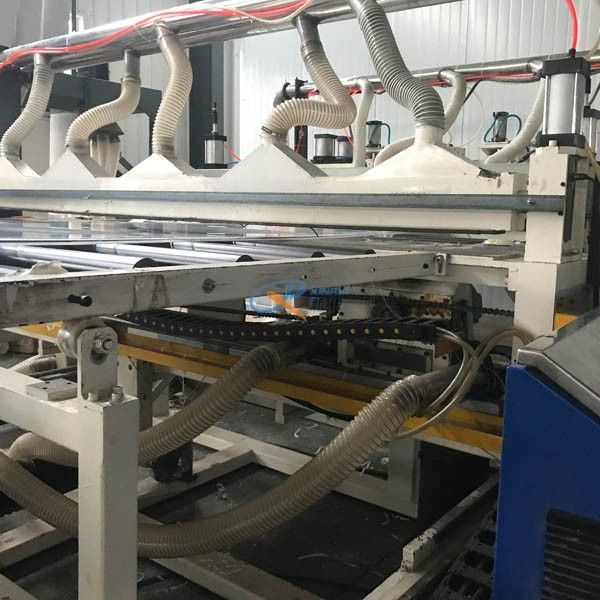

PC Board Production Line Pictures:

Polycarbonate 1220mm 3m Plastic Board Making Machine 0

Polycarbonate 1220mm 3m Plastic Board Making Machine 1

Polycarbonate 1220mm 3m Plastic Board Making Machine 2

Polycarbonate 1220mm 3m Plastic Board Making Machine 3

Company introduction:

Polycarbonate 1220mm 3m Plastic Board Making Machine 4

Qingdao Xinrui Plastic Machinery is a professional plastic extrusion machine manufacturer with more than 10 years experience.

We are engaged into plastic mat production line,plastic board production line,plastic pipe production line,plastic profile production line as well as various kinds of pelletizing production line.Our company could supply turn-key project as feasibility report,workshop plannning,technical support ,follow-up manufacturing,testing,delivery,installation and training.We could delivery our engineers to your factory for after-sales service.We are exporting various kinds of machine to more than 20 countires as India,Pakistan,Israel,Bulgaria,Russia,Uzbekistan,Egypt,Vietnam,Thailand,Indonesia,Malaysia,Tanzania,Oman and so on.Our company put the reputation and quality in the frist place and make an utmost effort to supply our best service.

Look forward to getting your inquiry and hope we could cooperate on the basis of win-win situation.

FAQ:

Q1: Your company is a trading company or a machine manufacturer?

A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 10 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it is more convenient.

Q2:How to get an accurate offer?

A2:Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email,whatsapp or wechat.

Q3:Where is your factory and which port is the nearest to your factory?

A3:My factory is in Qingdao city,Shandong Province and it would take about 1hour from our factory to Liuiting Airport.

The nearest port is Qingdao port.

Q4:How long is the delivery time?

A4:Generally it will take 35-45days.

Q5:Could you send your engineers to our factory?

A5:Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.
