150mm 160kg/H Concrete Joint PVC Waterstops Making Machine

Basic Information
Place of Origin: QINGDAO
Brand Name: XINRUI
Certification: CE,ISO
Model Number: SJSZ
Minimum Order Quantity: 1 Set
Price: USD35,000-36,000/Set
Packaging Details: Wooden case and PE Film Packing
Delivery Time: 35days
Payment Terms: L/C, D/P, T/T
Material: PVC+DOP+Caco3+Additives Motor: Siemens
Inverter: ABB Temperature Controller: Omron
Contactor: Schneider Punching Hole: Available
High Light:

160kg/h PVC Waterstops Making Machine

,

150mm PVC Waterstops Making Machine

,

160kg/h plastic product making machine

PVC Waterstops are produced from high-grade PVC compounds. They are designed for sealing movement and construction joints in reinforced concrete structures.

PVC Waterstops, used in concrete for the sealing of construction and expansion joints, are embedded in concrete, across and along the joint, to form a continuous watertight diaphragm that prevents the passage of fluid through the joint.



Main Parameters of pvc waterstops

Width:150-400mm

Length: Fixed-length cut
Output: 150-160kg/h

Dimensions:According to the drawing



Location Indoor
Power 3-Phase,380V,50Hz
Total installed capacity ≥100KVA
Cooling water ≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line
Compressed air 0.3 m³ /min, >0.5MPa,
Equipped with 3kw air compressor
Production Line Dimension 20m*2.5m*2.8m

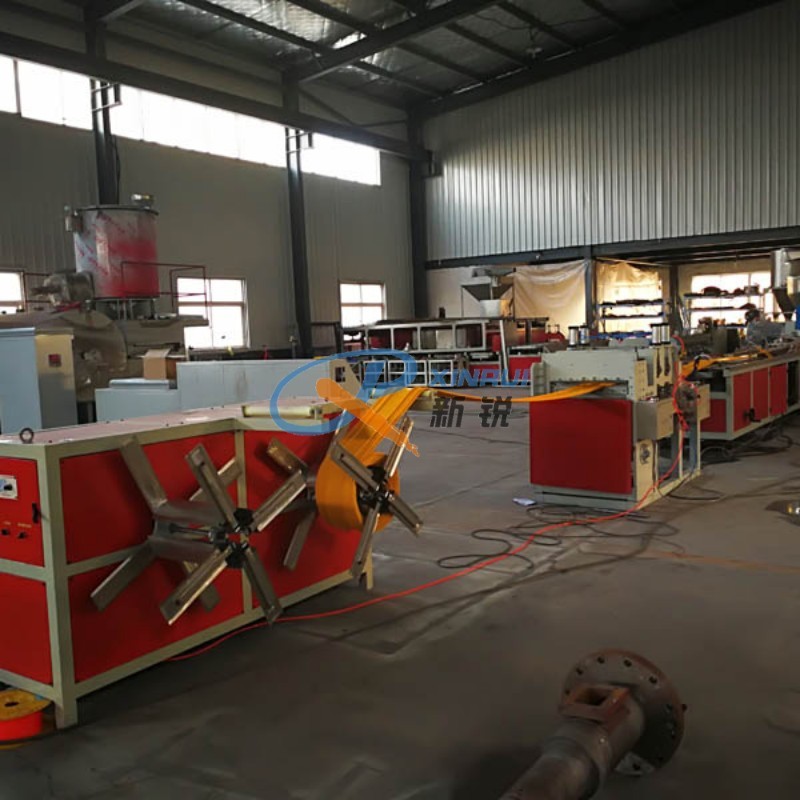

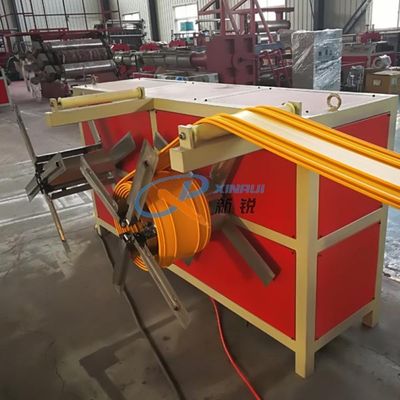

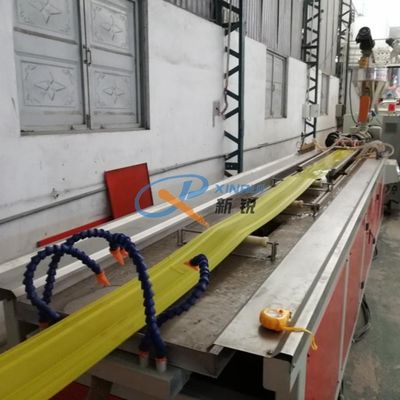

Machine Pictures:

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 0

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 1

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 2

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 3

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 4

Company introduction:

150mm 160kg/H Concrete Joint PVC Waterstops Making Machine 5

Qingdao Xinrui Plastic Machinery is a professional plastic extrusion machine manufacturer with more than 10 years experience.

We are engaged into plastic mat production line,plastic board production line,plastic pipe production line,plastic profile production line as well as various kinds of pelletizing production line.Our company could supply turn-key project as feasibility report,workshop plannning,technical support ,follow-up manufacturing,testing,delivery,installation and training.We could delivery our engineers to your factory for after-sales service.We are exporting various kinds of machine to more than 20 countires as India,Pakistan,Israel,Bulgaria,Russia,Uzbekistan,Egypt,Vietnam,Thailand,Indonesia,Malaysia,Tanzania,Oman and so on.Our company put the reputation and quality in the frist place and make an utmost effort to supply our best service.

Look forward to getting your inquiry and hope we could cooperate on the basis of win-win situation.

FAQ:

Q1: Your company is a trading company or a machine manufacturer?

A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 10 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it is more convenient.

Q2:How to get an accurate offer?

A2:Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email,whatsapp or wechat.

Q3:Where is your factory and which port is the nearest to your factory?

A3:My factory is in Qingdao city,Shandong Province and it would take about 1hour from our factory to Liuiting Airport.

The nearest port is Qingdao port.

Q4:How long is the delivery time?

A4:Generally it will take 35-45days.

Q5:Could you send your engineers to our factory?

A5:Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.
