1220mm 6mm Marble PVC Sheet Lamination Machine

Basic Information
Place of Origin: QINGDAO
Brand Name: XR
Certification: CE,ISO
Model Number: SJSZ
Minimum Order Quantity: 1set
Price: USD55000/Set
Packaging Details: Wooden case+PE film packing
Delivery Time: 40days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10sets/month
Motor: Siemens Inverter: ABB
Contactor: Schneider Temperature Conrtroller: Omron
Model: SJSZ80/156 Meter Counter: Omron
Voltage: 380V,415V,440V Screw Type: Double Screw
Quality Guarantee: 1 Year
High Light:

6mm sheet lamination machine

,

1220mm sheet lamination machine

,

1220mm pvc marble sheet machine

PVC Marble Sheet Making Machine:



Application:

1220mm 6mm Marble PVC Sheet Lamination Machine 0



PVC Marble Sheet Introduction:



Width: 1220mm
Length: 2440mm
Thickness: 1-6mm
Density: 2.0g/cm3
Output: 350-400kg/h

Application:PVC marble sheet is widely used in interior wall decoration,furniture lamination and plywood lamination,etc.



PVC Marble Sheet Making Machine Introduction:



1.Factory condition:

Name PVC Marble Sheet Making Machine
Location Indoors
Power Supply No dangerous area
Temperature 0-40℃
Power 3-Phase,380V,50Hz
Total installed capacity ≥250KVA
Cooling water ≤20ºC ≥0.3MPa, outdoor water tank: 20-30m3, water circulated with production line
Compressed air 0.3 m³ /min, >0.5MPa,
Equipped with 5.5-7.5kw air compressor
Production Line 20m*3m*3m
Labor 2-3 persons



1.2 Flow chart:

Mixer→Screw loading→Extruder→T-die→Three-roll calender→Cooling bracket→Haul off→Cutter→Robotic stacker

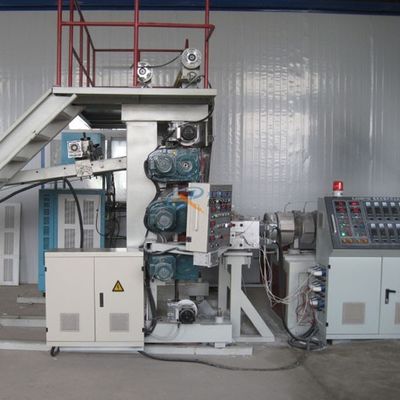

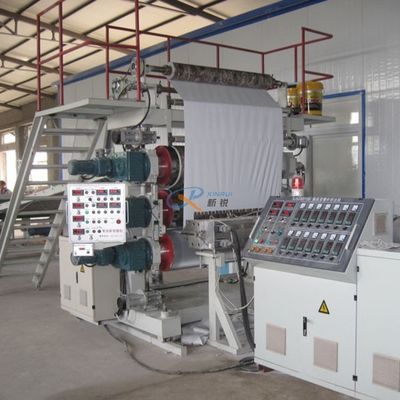

PVC Marble Sheet Making Machine pictures:

1220mm 6mm Marble PVC Sheet Lamination Machine 1

1220mm 6mm Marble PVC Sheet Lamination Machine 2

1220mm 6mm Marble PVC Sheet Lamination Machine 3

1220mm 6mm Marble PVC Sheet Lamination Machine 4

1220mm 6mm Marble PVC Sheet Lamination Machine 5

UV Coating Machine:

(UV layer could increase abrasion resistance and hardness)

1220mm 6mm Marble PVC Sheet Lamination Machine 6



Company introduction:

1220mm 6mm Marble PVC Sheet Lamination Machine 7

Qingdao Xinrui Plastic Machinery is a professional plastic extrusion machine manufacturer with more than 10 years experience.

We are engaged into plastic mat production line,plastic board production line,plastic pipe production line,plastic profile production line as well as various kinds of pelletizing production line.Our company could supply turn-key project as feasibility report,workshop plannning,technical support ,follow-up manufacturing,testing,delivery,installation and training.We could delivery our engineers to your factory for after-sales service.We are exporting various kinds of machine to more than 20 countires as India,Pakistan,Israel,Bulgaria,Russia,Uzbekistan,Egypt,Vietnam,Thailand,Indonesia,Malaysia,Tanzania,Oman and so on.Our company put the reputation and quality in the frist place and make an utmost effort to supply our best service.

Look forward to getting your inquiry and hope we could cooperate on the basis of win-win situation.

FAQ:

Q1: Your company is a trading company or a machine manufacturer?

A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 10 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it is more convenient.

Q2:How to get an accurate offer?

A2:Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email,whatsapp or wechat.

Q3:Where is your factory and which port is the nearest to your factory?

A3:My factory is in Qingdao city,Shandong Province and it would take about 1hour from our factory to Liuiting Airport.

The nearest port is Qingdao port.

Q4:How long is the delivery time?

A4:Generally it will take 35-45days.

Q5:Could you send your engineers to our factory?

A5:Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.

Certificate:

1220mm 6mm Marble PVC Sheet Lamination Machine 8

Customers:

1220mm 6mm Marble PVC Sheet Lamination Machine 9

Delivery:

1220mm 6mm Marble PVC Sheet Lamination Machine 10
