1200mm 40gsm Meltblown Nonwoven Fabric Making Machine

Basic Information
Place of Origin: QINGDAO
Brand Name: XINRUI
Certification: CE,ISO
Model Number: SJ-75
Minimum Order Quantity: 1set
Price: USD32000-45000/Set
Packaging Details: Wooden case and PE film
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10+Set+per Month
Screw Diameter: 75mm Installed Capacity: 80-100KVA
Voltage: 380V,50Hz Output: 400-500kg/day
Motor: Siemens Motor Inverter: ABB
Contactor: Schneider Temperature Controller: Omron
SSR: Fotek Type: Vertical-type
High Light:

1200mm meltblown nonwoven fabric making machine

,

40gsm meltblown nonwoven fabric making machine

,

40gsm pp spunbond nonwoven fabric machine

Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine:



PP meltblown nonwoven fabric making machine could produce the meltblown fabric which could achieve the standard more than BFE95-99.It could produce the width 600mm,800mm,1000mm,1200mm,1400mm,1600mm and the weight 25-40gsm or as your request.



Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine

1. Basic Introduction:



1.1Factory condition:

Location Indoors
Power supply No dangerous area
Humidity ≤65%
Temperature 20-30℃
Power 3-Phase,380V,50Hz
Total installed capacity 80KVA
Prodution line dimension 10m*2m*3m




1.2 Flow Chart:

Vacuum Loader→Extruder→Hydraulic screen changer→Metering gear pump →Mould→Cooling conveyor belt→Electrostatic electret device→Online slitting device→Winding device



2. PP Meltblown Nonwoven Fabric Making Machine Advantage:

Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine



1. Our machine design is mainly to produce BFE95&99 meltblown nonwoven fabric.

2. We adopt high quality T-die and spinneret,it is the core element for fabric filament quality,

because the spinneret hole is smaller,generally it is Φ0.2-0.3mm,if mould quality is bad,it is easier to be blocked,it is hard to produce high quality meltblown nonwoven fabric as well as increase the more time on cleaning the spinneret hole.

3. High quality hydraulic sreen changer and meter pump could supply stable pressure to T-die and it would help to produce uniform and even fabric.

4. Our meltblown fabric making machine is equipped with all the necesary machines like electrostatic electret device,heating oven,ultrasonic cleaning device and mixer.

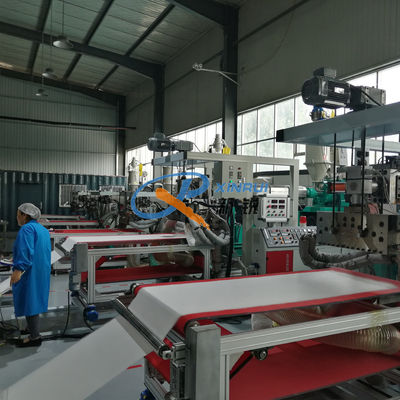

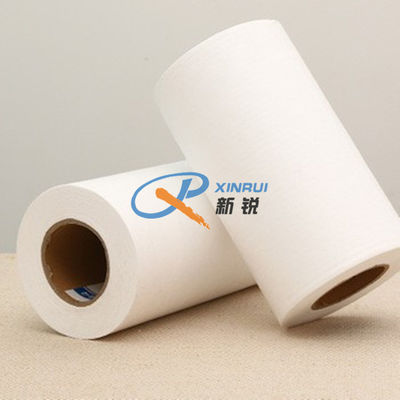

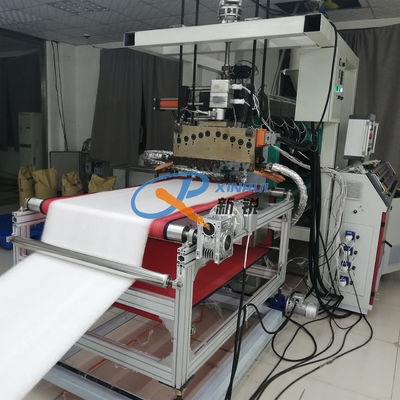

3Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine Pictures:

Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making MachineLow Cost Fast Delivery PP Meltblown Nonwoven Fabric Making MachineLow Cost Fast Delivery PP Meltblown Nonwoven Fabric Making MachineLow Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine

Low Cost Fast Delivery PP Meltblown Nonwoven Fabric Making Machine
