500kg/Day BFE95 Pp Non Woven Fabric Making Machine

1set
MOQ
USD32000-45000/Set
Price
500kg/Day BFE95 Pp Non Woven Fabric Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Screw Diameter: 75mm
Installed Capacity: 80-100KVA
Voltage: 380V,50Hz
Output: 400-500kg/day
Motor: Siemens Motor
Inverter: ABB
Contactor: Schneider
Temperature Controller: Omron
SSR: Fotek
Type: Vertical-type
Highlight:

500kg/Day pp non woven fabric making machine

,

BFE95 pp non woven fabric making machine

,

BFE95 non woven fabric manufacturing machine

Basic Infomation
Place of Origin: QINGDAO
Brand Name: XINRUI
Certification: CE,ISO
Model Number: SJ-75
Payment & Shipping Terms
Packaging Details: Wooden case and PE film
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10+Set+per Month
Product Description

5days Delivery Low Cost PP Meltblown Fabric Making Machine:



PP meltblown nonwoven fabric making machine could produce the meltblown fabric which could achieve the standard more than BFE95-99.It could produce the width 600mm,800mm,1000mm,1200mm,1400mm,1600mm and the weight 25-40gsm or as your request.



5days Delivery Low Cost PP Meltblown Fabric Making Machine

1. Basic Introduction:



1.1 Factory condition:

Location Indoors
Power supply No dangerous area
Humidity ≤65%
Temperature 20-30℃
Power 3-Phase,380V,50Hz
Total installed capacity 80KVA
Prodution line dimension 10m*2m*3m




1.2 Flow Chart:

Vacuum Loader→Extruder→Hydraulic screen changer→Metering gear pump →Mould→Cooling conveyor belt→Electrostatic electret device→Online slitting device→Winding device



2. PP Meltblown Nonwoven Fabric Making Machine Advantage:



1. Our machine design is mainly to produce BFE95&99 meltblown nonwoven fabric.

2. We adopt high quality T-die and spinneret,it is the core element for fabric filament quality,

because the spinneret hole is smaller,generally it is Φ0.2-0.3mm,if mould quality is bad,it is easier to be blocked,it is hard to produce high quality meltblown nonwoven fabric as well as increase the more time on cleaning the spinneret hole.

3. High quality hydraulic sreen changer and meter pump could supply stable pressure to T-die and it would help to produce uniform and even fabric.

4. Our meltblown fabric making machine is equipped with all the necesary machines like electrostatic electret device,heating oven,ultrasonic cleaning device and mixer.

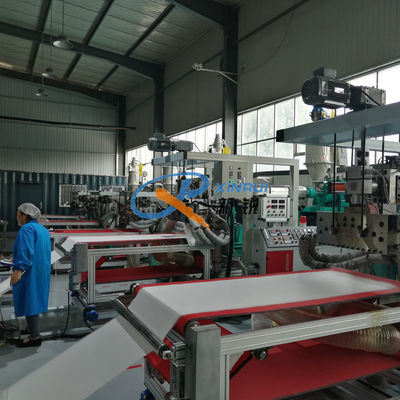

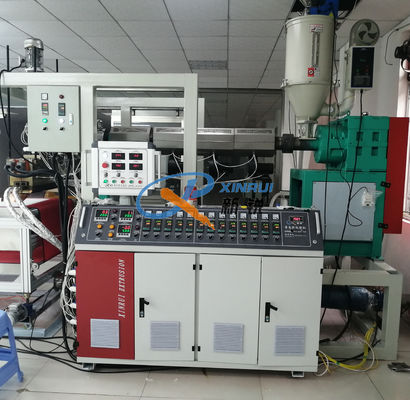

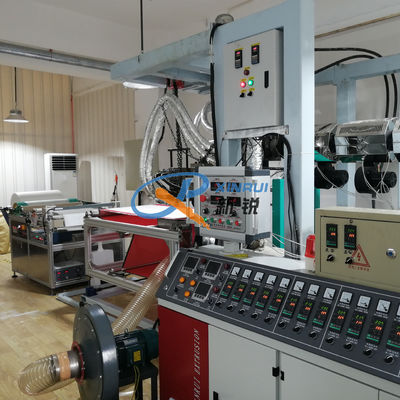

3PP Meltblown Nonwoven Fabric Making Machine Pictures:

500kg/Day BFE95 Pp Non Woven Fabric Making Machine 0500kg/Day BFE95 Pp Non Woven Fabric Making Machine 1500kg/Day BFE95 Pp Non Woven Fabric Making Machine 2500kg/Day BFE95 Pp Non Woven Fabric Making Machine 3

500kg/Day BFE95 Pp Non Woven Fabric Making Machine 4

Company Information:

500kg/Day BFE95 Pp Non Woven Fabric Making Machine 5500kg/Day BFE95 Pp Non Woven Fabric Making Machine 6
