18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine

1SET
MOQ
USD 20000-40000
Price
18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Packaging Material: Plastic
Automatic Grade: Automatic
Condition: New
Warranty: 1 Year
Key Selling Points: Easy To Operate,High-accuracy,Multifunctional,Automatic,Energy Saving
Highlight:

18m single screw extrusion machine

,

2mm single screw extrusion machine

,

2mm single screw extruder

Basic Infomation
Place of Origin: SHANDONG,CHINA
Brand Name: XINRUI
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms
Packaging Details: PE FILM COVERED
Delivery Time: 30DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 20SETS PER YEAR
Product Description

Products Application

Products Application

PP PE PVC Welding Rod Profile Extrusion Making Machine



Triangle&Round PVC PE PP Welding Rod Making Machine
Machine Parts:
Loader→Extruder→Die→Water tank→Haul Off→Cutter→Stacker&Winder

1. This production line adopts single screw extruder equipped with SIEMENS motor and ABB inverter.
2. Special design for die head to ensure the consistent and stable production as well as to achieve to change sizes fast.
3. Reasonable water temperature control to ensure the even roundness and smooth surface.
4. Haul off could match cutter well to achieve fixed-length cut and reduce the tolerance.
5. Accurate winding to guarantee the welding rod winded in alignment.

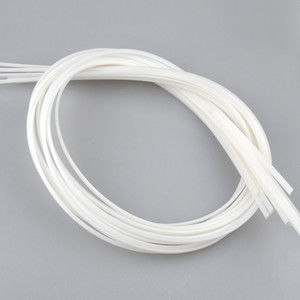

Welding rod diameter:
2mm,3mm,4mm,6mm and etc.



Location Indoors
Power Supply No dangerous area
Humidity ≤95%
Temperature 0-40ºC
Power 3-phase, 380V, 50Hz
Total Installed Power ≤40KW
Cooling Water ≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line
Compressed air 0.3 m³ /min, >0.5MPa,
Equipped with 3kw air compressor
Production Line Dimension 18m*1.5m*1.8m

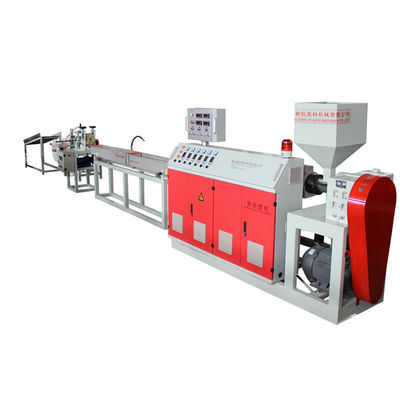

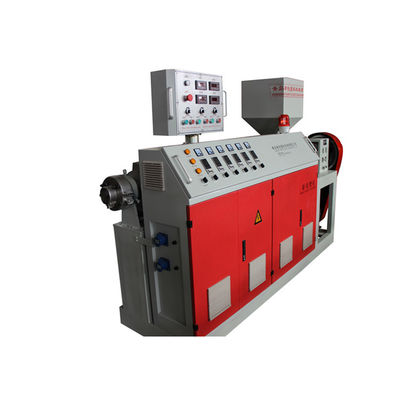

Machine Photoes

18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine 018m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine 1



Certificate Showing

18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine 2





Packing&Shipping

18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine 3





Customers

18m*1.5m*1.8m 2mm Welding Rod Single Screw Extrusion Machine 4
